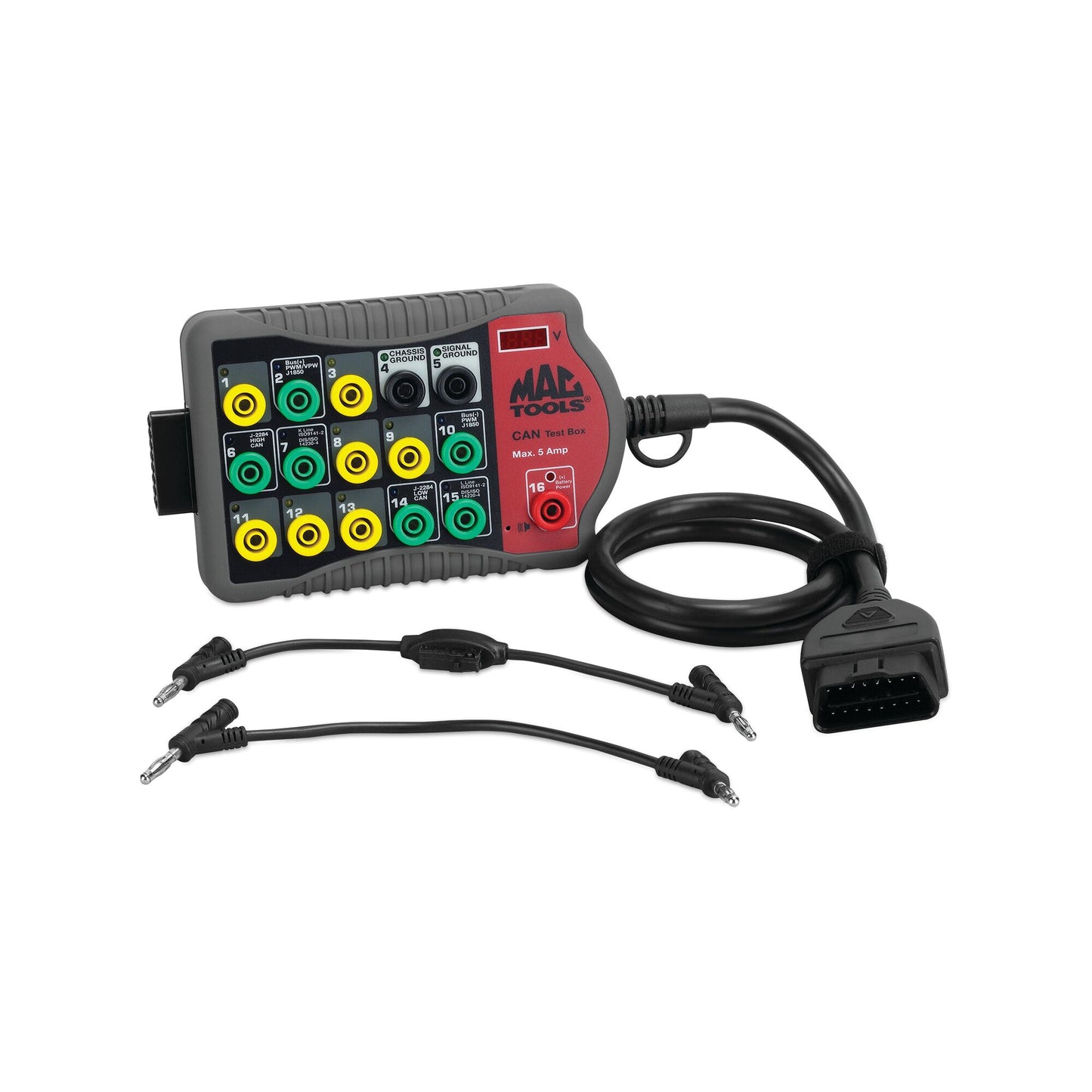

Features & Benefits
- Diagnose electrical faults and CAN bus line activity
- Detects data and protocol communication
- Displays system voltage – Display and high/low alarm
- LEDs at pinout verify signal and ECU activity
- Connects between data link connector (DLC) and scan tool
- Monitors system voltage – display and high/low alarm
- Continuous numeric display or voltage
- Check and monitor battery voltage
- Connect leads for increased diagnosis, and monitoring
- Probe lines with scope or DMM for detailed signal information
- Ideal for troubleshooting OBD II communication issues
- UNLIKE OTHER DEVICES, THIS UNIT HAS THE FOLLOWING: Digital voltage readout allows technician to view pin 16V without connecting DMM; Terminal LEDs and flashing LEDs for ECU activity allow technicians to view which pins have power, ground, and communication without connecting DMM; Color coded terminals to easily identify which pins should have power, ground, and signal; Audible signal for high/low voltage alarm – useful for wiggle tests, etc.
Specifications
- Brand: MacTools
- Style: Breakout Box
