Features & Benefits

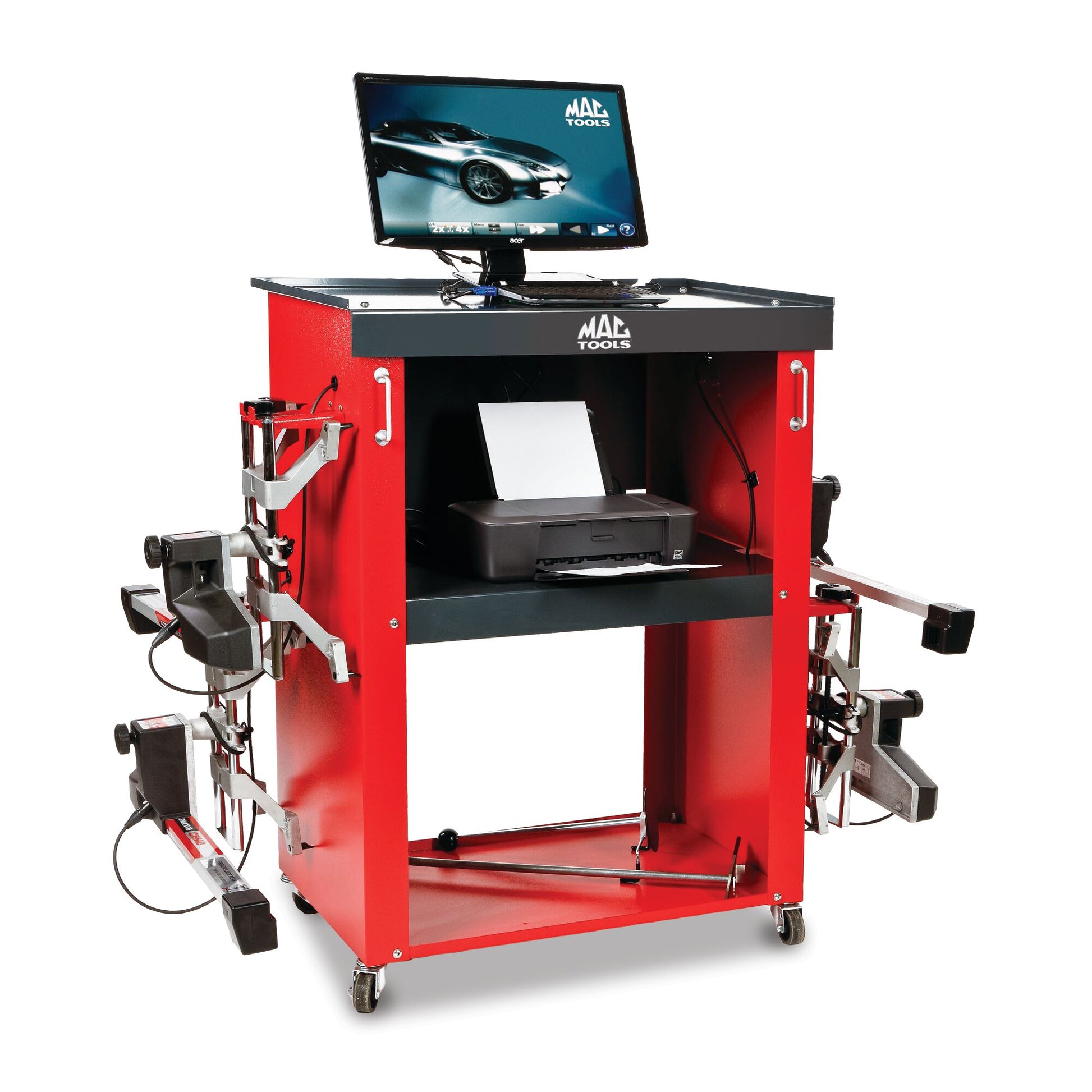

- The WL5200CL is a unique wheel alignment system for cars and light trucks that offers four Bluetooth wireless rechargeable alignment heads which include lithium ion batteries for long life
- Accelerometers (newest measuring technology)
- PC-based software with multiple languages
- 24" Wheel clamping range (30" optional)
- Power supply and USB Bluetooth antenna
- Vehicle and customer database
- Alignment specification database with the thirty most recent model years
- Function controls at measuring heads
- Two-wheel alignment capable with two heads only
- Aside from typical toe, caster, and camber, WL5200CL also measures Steering Axis Inclination (SAI), toe out on turns, and set-back
- Lock and hold adjustments for lifted wheels
- Freeze mode
- View all adjustments for one axle on one screen
- Front and rear spoiler mode allow heads to be tilted into view
- Zoom screen from each head to increase viewing range
- All front and rear readings are live
- Each machine comes with a 1-year parts and labor warranty
- Manufacturer reserves the right to make any and all alterations it may consider suitable without notice
- Printer
- 23" Flat screen monitor
- Steering wheel lock
- Brake pedal lock
Includes
- OPTIONAL ACCESSORIES: Turnplates
- Backup cable kit
- Jaw extension kit
- (For trucks with dual rear wheels)
- 30-inch Clamp extension kit
- Drop down kit
Specifications
- Brand: MacTools
- Style: Cordless
